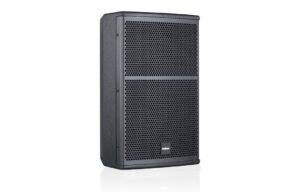

AT15

15-inch professional speaker

System type: 15 inches, 2-way, low-frequency reflex

Frequency range (-10 dB)1 35 Hz – 20 KHz

Frequency response (±3 dB)1 50 Hz – 20 KHz

Sensitivity(1w/1m)1 99 dB

Rated impedance 8 Ohms

Maximum sound pressure level output 127 dB (peak value: 133dB)

Rated input power 2

(continuous/music signal/peak) 350 W/700 W/1400 W

Coverage angle 70° x 60°(H x V)

Appearance

Overall dimensions (H x W x D) 680 mm x 430 mm x 430 mm

Bass unit 190 magnetic 75 core imported unit

Tweeter 120 magnetic 44 core imported unit

Input connectors 2 Neutrik® Speakon® NL4MP

Box structure: trapezoid, 18 mm thick plywood

100 magnet 75 core aluminum frame 120 magnet 44 core

18mm birch plywood sprayed with wear-resistant black paint.

Applicable to: small and medium-sized performances, KTV nightclub rooms, performing arts lectures, multi-functional conference halls, etc.
