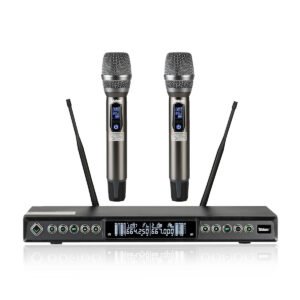

TDAP02

One to two wireless microphones

Host parameters: Host working voltage: DC--12V Working current: 600mA Power consumption: 7.2W Display: LCD*2 RF carrier range: 615~695MHZ Working distance 150 meters Format: FM Pilot mode: digital pilot Maximum number of channels: 200 System compatibility: 30 units can be used simultaneously Frequency response: 80HZ ~ 15KHz (±3db) Dynamic range: >110db System distortion/total harmonic distortion THD: < 0.5% Signal-to-noise ratio: S/N> 100db (A) RF sensitivity: -98dbm for 30db S/N Ratio Image suppression: >75db Output interface: (XLRx2)/(1/4-inch connector×1) Audio output level: (XLR:+10dbV) / (1/4-inch connector:+8dbV) Output impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ) Power requirements: 12V/800mA Working temperature range: 0-50 ℃ Receiving sensitivity: -105dBM Distortion THD: <0.01% Audio output voltage: 0.3V Adjacent channel interference suppression: >60dB Receiver: 44.4mm high * 483mm wide 185mm deep

Handheld microphone parameters

Pickup type: moving coil

Microphone core directivity: cardioid

Sound pickup sensitivity: >-20dBM (1V)

Transmit power: >+10dBM(10mWH)

Microphone power consumption: 110mA

Effective distance: barrier-free straight line 150 meters

Audio response: 80HZ—18KHZ

Frequency stability: +-0.001%

Anti-electromagnetic wave from mobile phones: yes



Gain: 10db

Input impedance: 5KΩ

RF output power: 30mW

Side wave suppression: > 50db

Pilot: digital pilot

Display mode: LCD

Power requirements: 1.5V*2(AA)

Battery life: >5 hours/calculated at 1800mA

Hand length: 22CM

Effective sound pickup distance: 30cm

Working frequency: 610-780MHz controlled by microcomputer CPU

Frequency stability: ±0.002%

FM maximum modulation frequency deviation: ±45KHz

Gain: 10db

Communication command: controlled by microcomputer CPU

Battery reminder: intelligent battery under-voltage warning display

Circuit indicators: PLL phase-locked loop frequency synthesis technology, dynamic audio compression and automatic level control circuit

Gain: 10db
