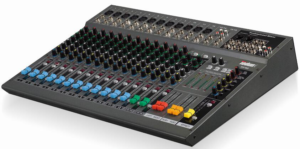

16-way professional mixer
●Input method: 12-way microphone card dragon mother, 4-way lotus
●Output mode: Main channel, two-channel balance, 6.35 socket. SUB two-channel 6.35 socket
●Mono input is equipped with a high-quality microphone amplifier.
●Function: high, middle and bass adjustment, microphone 48V power supply selection, recording output, 2 group outputs, 2 auxiliary outputs, digital reverb
●Each channel has 3-band parametric equalizer of high, medium and low.
●Beautiful sound quality.
●External low-noise power supply design.
●Equipped with recording input and output functions
●Switches and indications: ship-shaped switch, panel power indicator light, monitoring level indication
●Factory configuration: finished product, manual, certificate, warranty card, power adapter
●Input voltage: AC220V/50Hz
●Rated power: 45W
●Frequency response: 20Hz～20KHz
●Weight: 7KG
●Specifications (length*width*height) mm: 560*400*90
●Maximum output level: 19dBm (1KHz, THD=0.5%)
●Residual noise: -75dB
●Signal to noise ratio: 71dB
●Equivalent noise source input electromotive force -12dBm
●Headphone output power: 40mw (1KHz, THD=0.5%, 200Ω)
●Balance: Low frequency: 80Hz±15dB
IF: 2.5KHz±15dB
High frequency: 12KHz±15dB
●Gain control: Mono: -55dB～0 dB. Stereo: -10dB～0dB
●Frequency response: 20Hz～20KHz (+1dB, -3dB)
●Total harmonic distortion + noise: ≤0.05% (1KHz, 0.775V)
